This riflescope has main tube diameter 30mm and overall diameter of the objective bell is 24mm.

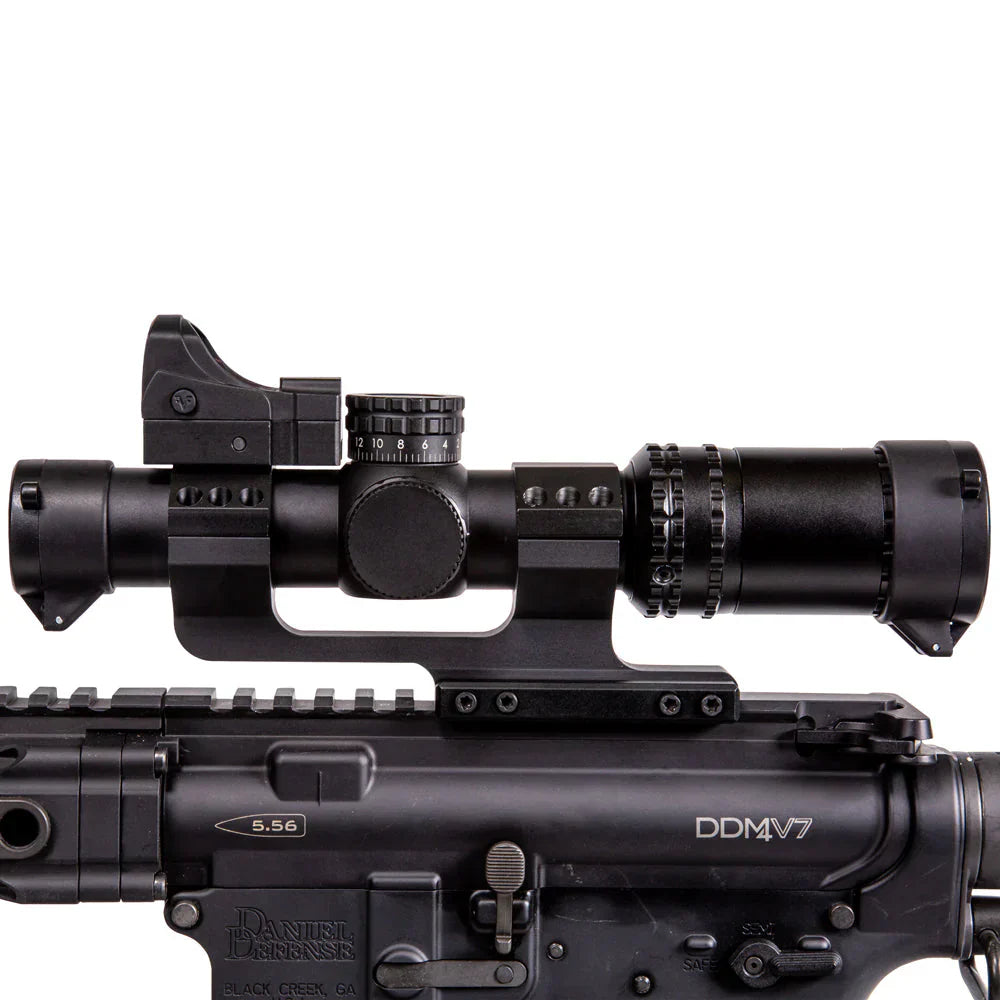

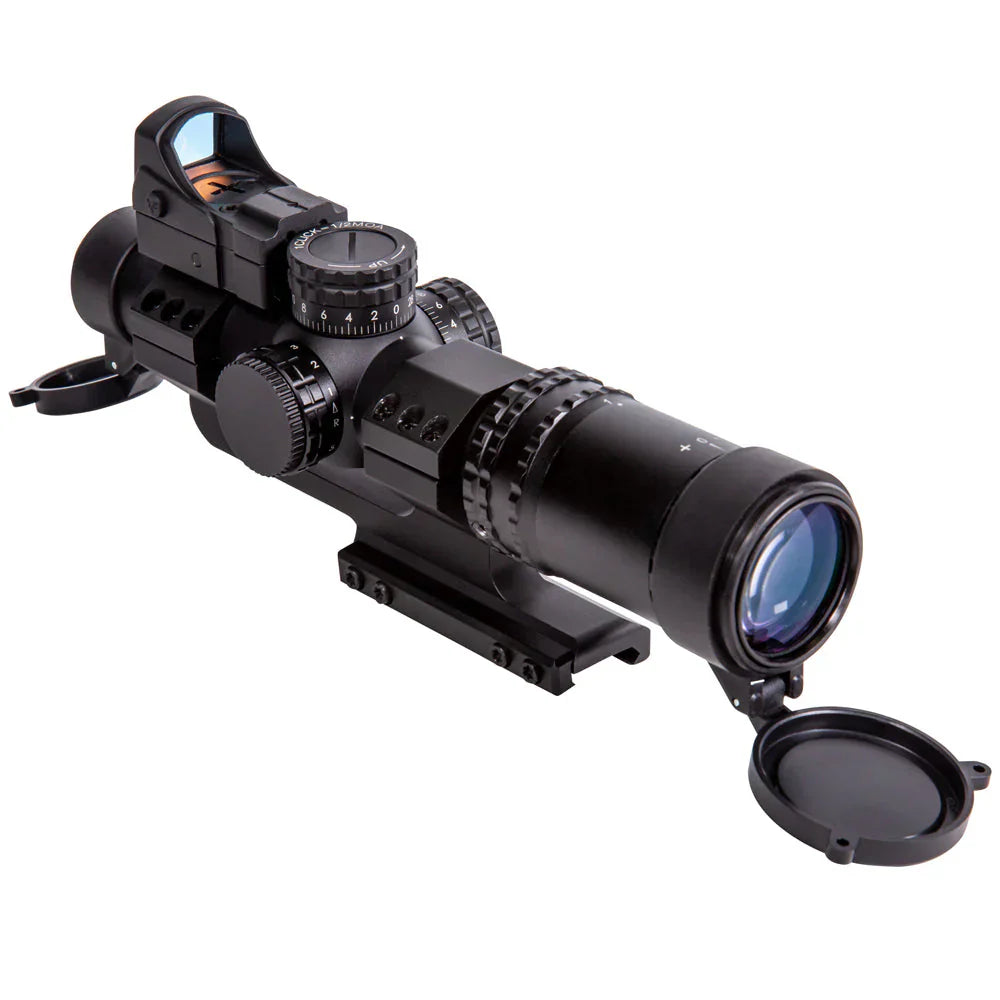

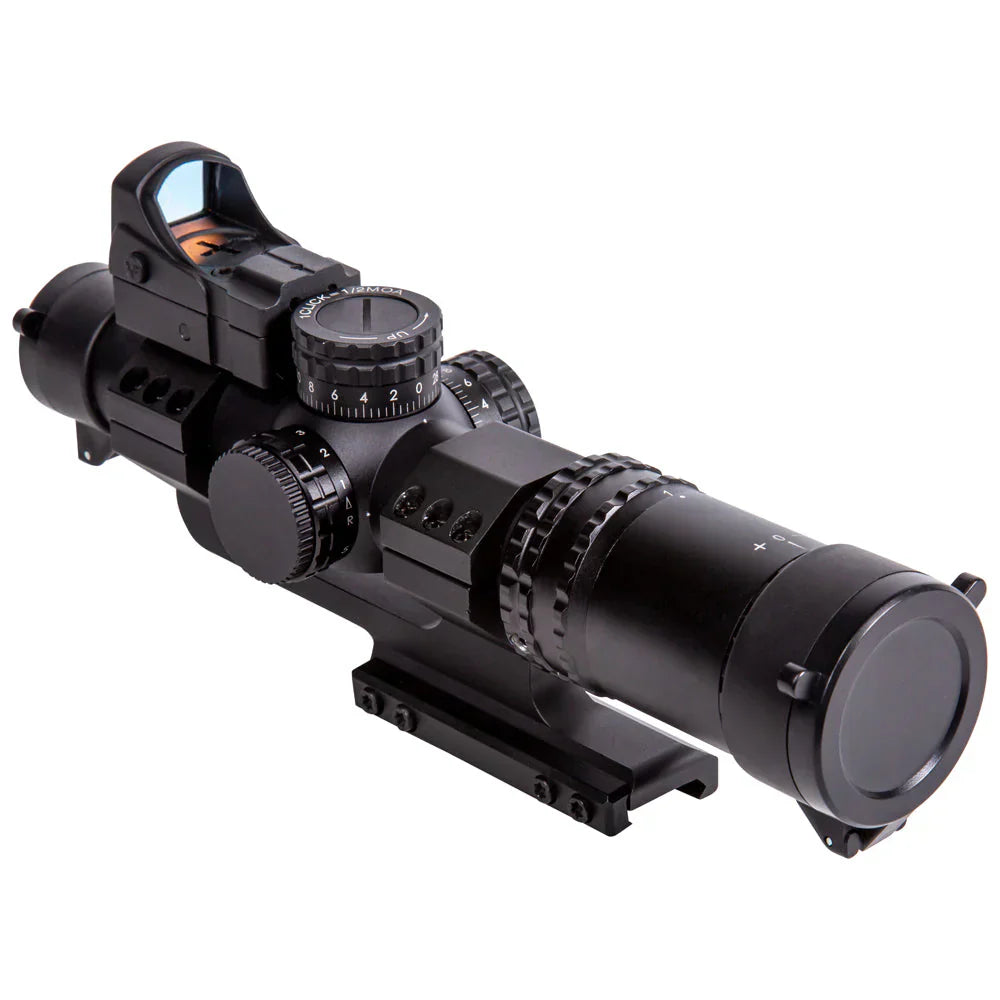

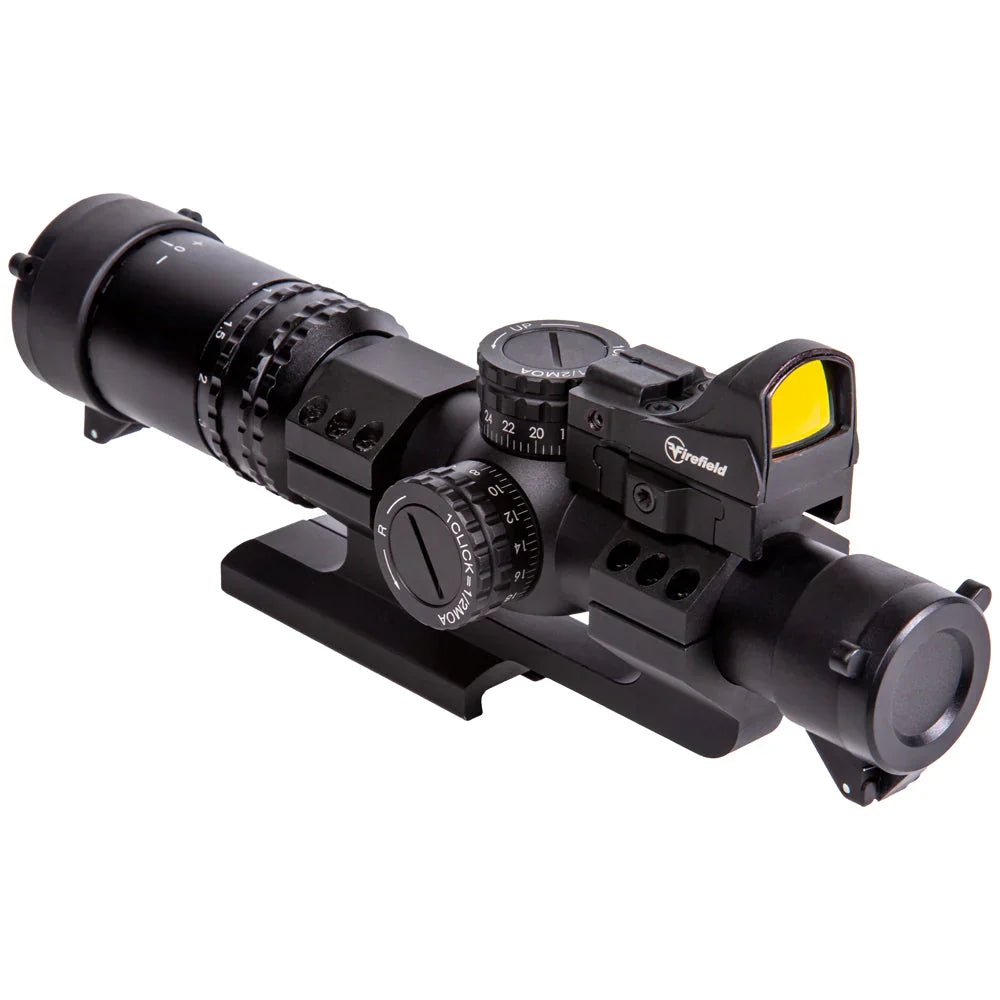

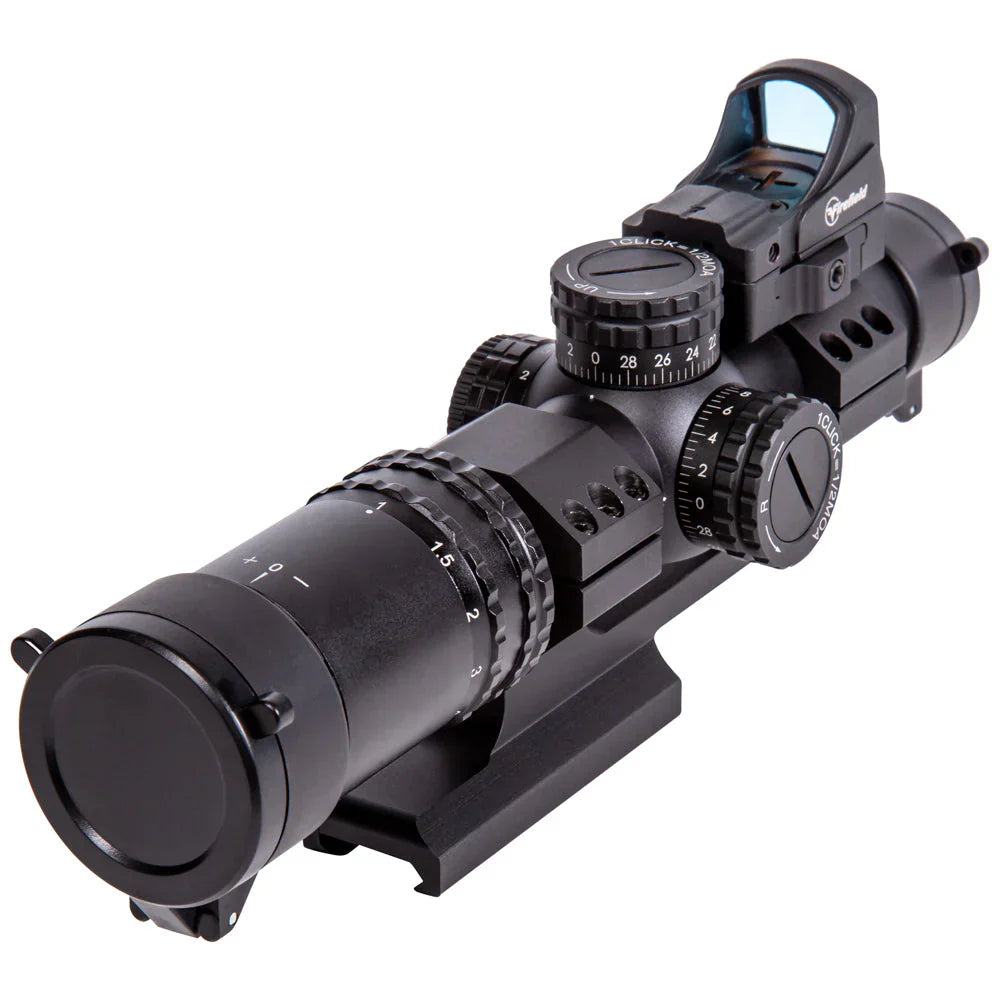

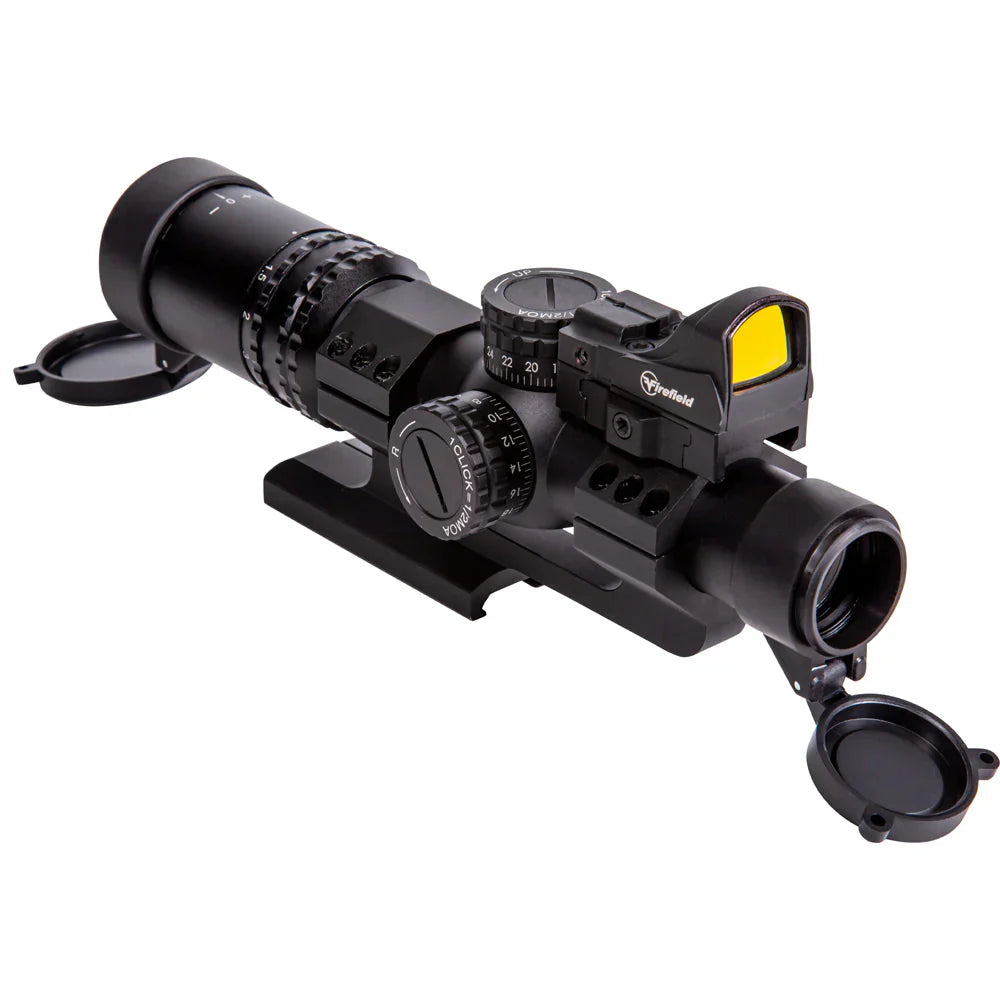

For a powerful, versatile riflescope look no further than the Firefield RapidStrike 1-4x24! This optic’s magnification range is ideal for hog and varmint hunting or 3-gun competition, and the included Impact Mini reflex sight ensures fast and accurate target acquisition. The RapidStrike 1-4x features a fully multi-coated lens and a red, green or black Circle Dot reticle with 5 brightness settings to accommodate your environment and target preferences. Housed in a durable aluminum body, the RapidStrike 1-4x is IP67 waterproof and dustproof, fog-proof, able to withstand up to .338 caliber recoil and capable of operating in temperatures ranging from -25° to 55°C (-13° to 131°F). Utilizing CR2032 batteries, the RapidStrike will function up to 100 hours and weighs a mere 393 g (13.86 oz).
In addition to the Impact Mini reflex sight value, the RapidStrike 1-4 kit includes a cantilever mount, pop-up locking turrets, and a dual optic setup for close-to-medium range engagements.

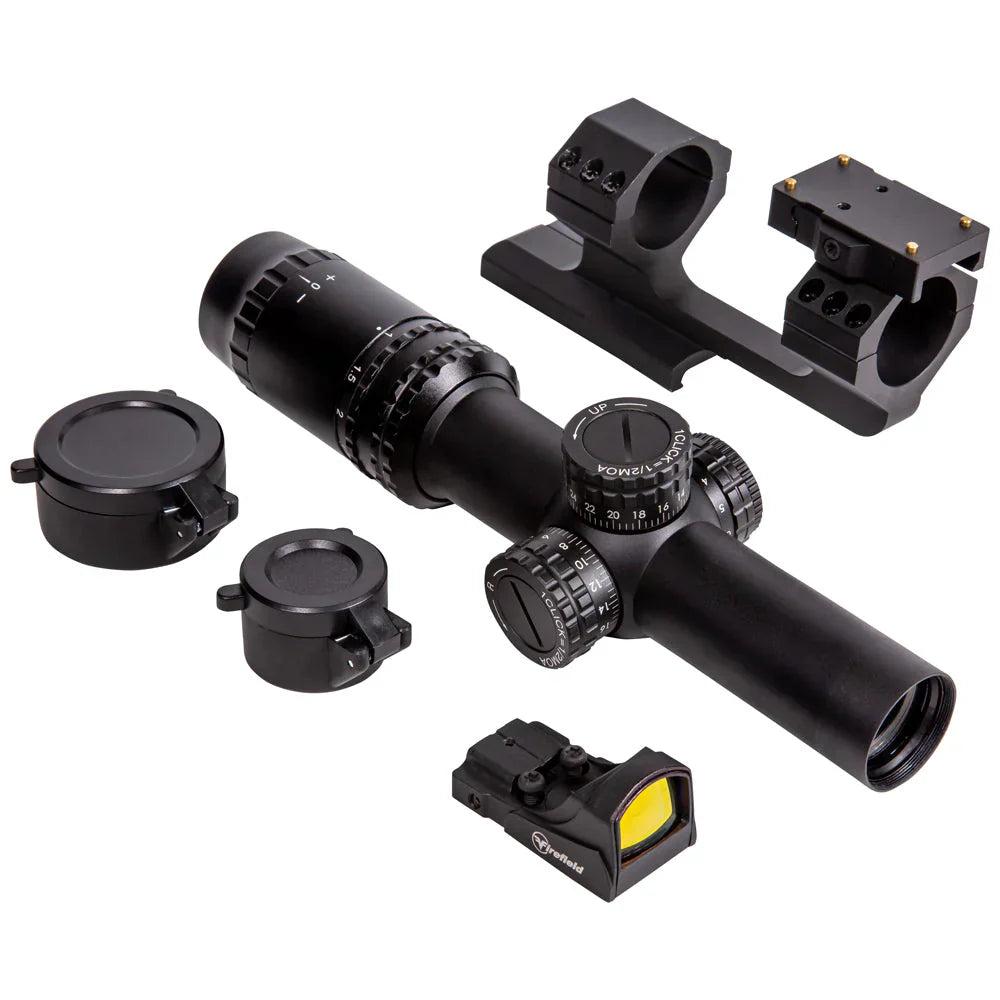

Included in Package
- Firefield Impact Mini Reflex Sight
- Cantilever mount
Battery Used
Features
- 1-4x Magnification
- Red or Green illuminated reticle
- 5 brightness settings
- Red Dot Sight with 5 MOA Dot

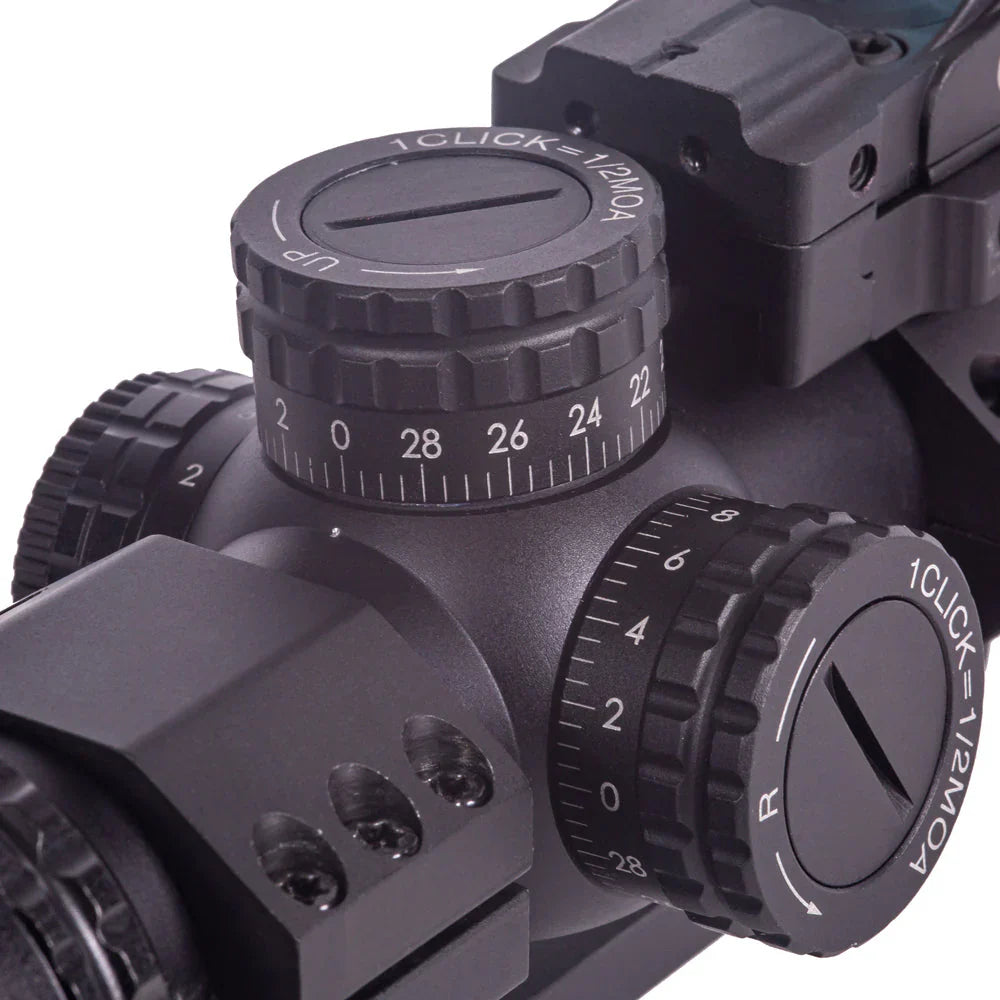

- Pop-up locking turrets
- Dual optic setup for close-to-medium range engagements
- Up to 100 hours of battery life
- Matte Black Finish
- IP67 rating – waterproof and dustproof
- Included Firefield Impact Mini Reflex Sight
- Included Cantilever Mount
| RIFLESCOPE TECHNICAL SPECIFICATIONS |
| Reticle type |
Circle Dot |
| Reticle color |
red, green, and black |
| Illuminated (yes/no) |
yes |
| Reticle brightness settings |
0-5 |
| Finish/color |
Matte black |
| Magnification (x) |
1-4 |
| Objective lens diameter (mm) |
24 |
| Eyepiece diameter (in/mm) |
1.65 / 42 |
| Exit pupil diameter (in/mm) |
0.55 - 0.2 / 14.15 - 4.8 |
| Eye relief (in/mm) |
3.98 / 101.2 |
| Field of view (m @100m) |
35.75 - 26.51 |
| Field of view (ft @100yd) |
107.3 - 24.24 |
| Diopter adjustment (+/-) |
+2 to -2 |
| Tube diameter (mm/in) |
30 mm |
| Parallax setting (yds) |
100 |
| Windage (MOA) |
50 |
| Elevation (MOA) |
50 |
| Windage & Elevation lock (yes/no) |
Yes |
| MOA adjustment (one click) |
1/2 MOA |
| Maximum recoil (Caliber) |
.338 |
| Battery type |
CR2032 |
| Battery life (hours) |
100 |
| Battery voltage (V) |
3V |
| Sunshade (yes/no) |
No |
| Nitrogen filled (yes/no) |
Yes |
| Shockproof (yes/no) |
Yes, 3ft |
| Fog proof (yes/no) |
Yes |
| Focal plane |
Second |
| IP Standard (water rating) |
IP67 - waterproof and dustproof |
| Body material |
Aluminum |
| Finish/color |
Matte black |
| Lens coatings |
Fully multi-coated |
| Operating temperature (°F/°C) |
-13 to 131 / -25 to 55 |
| Length (in/mm) |
8.86 / 225 |
| Width (in/mm) |
2.4 / 61 |
| Height (in/mm) |
1.9 / 47 |
| Weight (oz/g) |
13.86 / 393 |
| REFLEX SIGHT TECHNICAL SPECIFICATIONS |
| Reticle type |
5 MOA Dot |
| Reticle color |
Red |
| Illuminated reticle (yes/no) |
Yes |
| Brightness settings |
5 |
| Magnification (x) |
1x |
| Objective lens dimensions (mm) |
16 x 21 |
| Eye relief (in/mm) |
∞ |
| Elevation adjustment range (MOA) |
120 |
| Windage adjustment range (MOA) |
120 |
| Adjustment value (one click =) |
Continuous |
| Parallax setting |
50 yd |
| Finish/color |
Black Anodized |
| Body material |
Aluminum |
| Maximum recoil (G's) |
800 |
| IP rating |
IP55 |
| Nitrogen filled (yes/no) |
No |
| Shockproof (yes/no) |
Yes |
| Fogproof (yes/no) |
No |
| Lens Coatings |
AR Red |
| Mount type |
Weaver/Picatinny |
| Battery type |
CR1632 |
| Battery life (hours) |
40 Hours(On High)/200 Hours (On Low) |
| Battery voltage (V) |
3v |
| Operating temperature (°F/°C) |
0-120/-18-49 |
| Length (in/mm) |
1.9 / 49 |
| Width (in/mm) |
1.3 / 33 |
| Height (in/mm) |
1.42 / 36 |
| Weight (oz.) |
1.9 |
